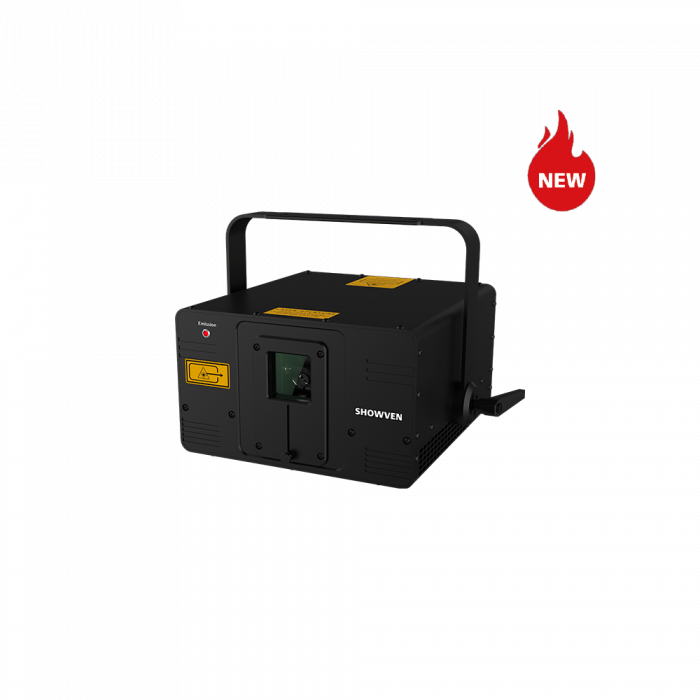

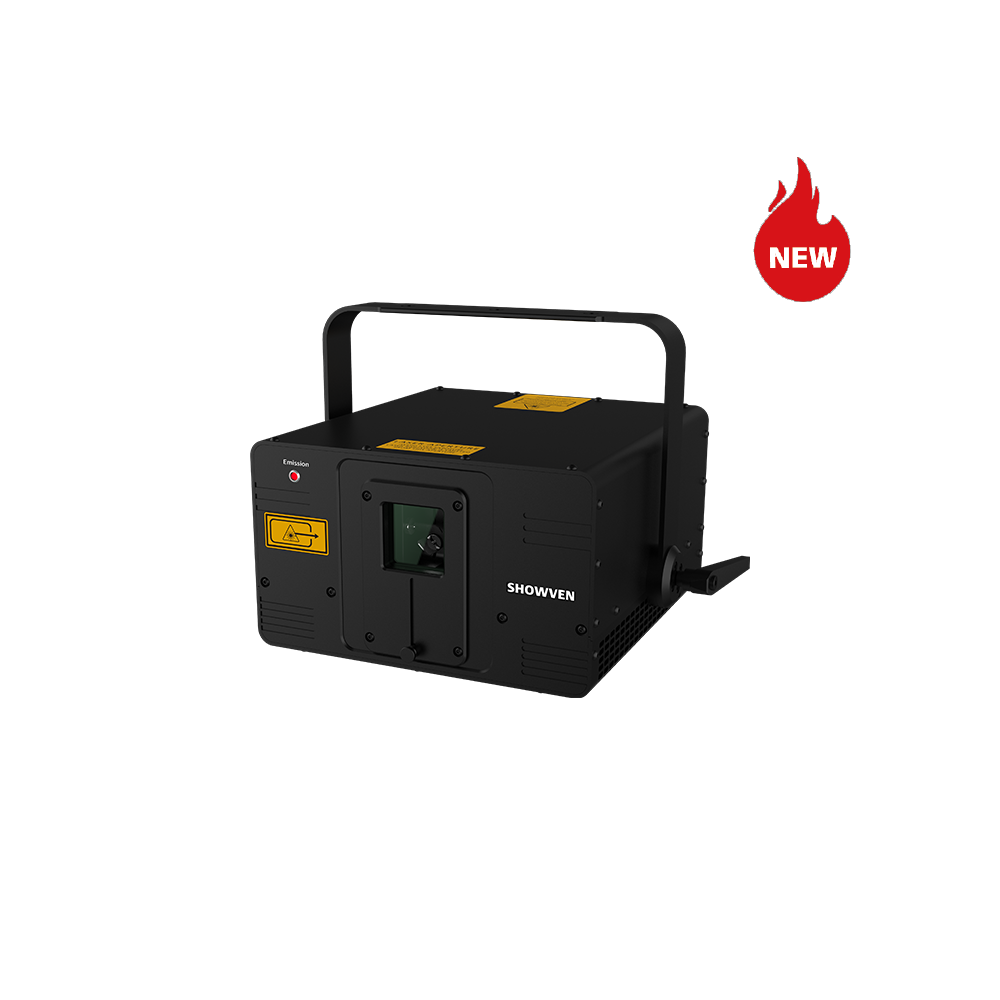

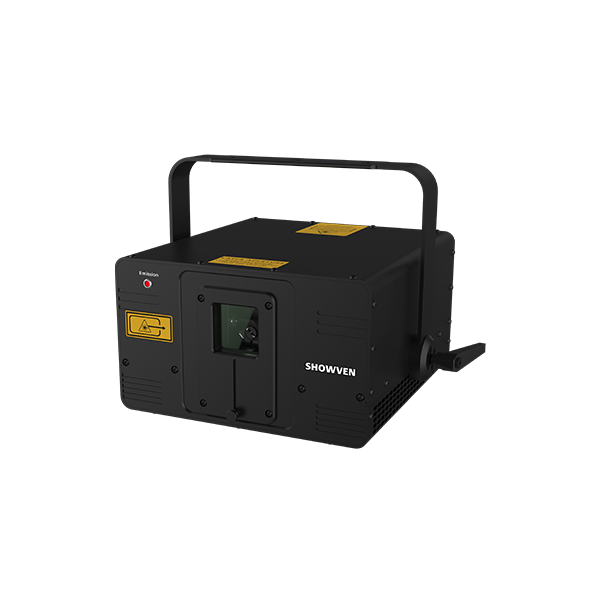

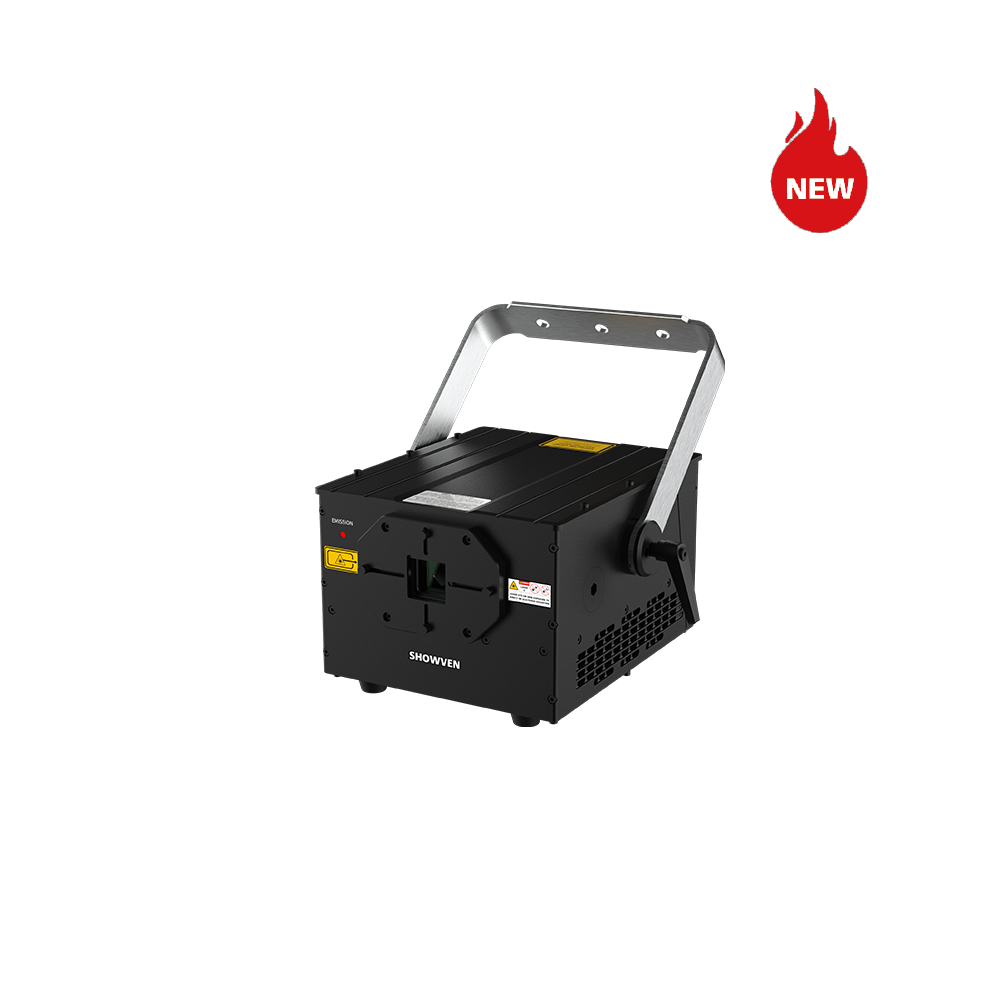

SHOWVEN Maiman 10 full-colour RGB laser is a new product based on our Maiman platform. It is with double-layer structure design, IP65 rated enclosure. Equipped with safety switch key, remote E-stop function, scan-fail safety etc. safety related configurations ensure the safety and controllability of laser use to the greatest extent.
Specifications:

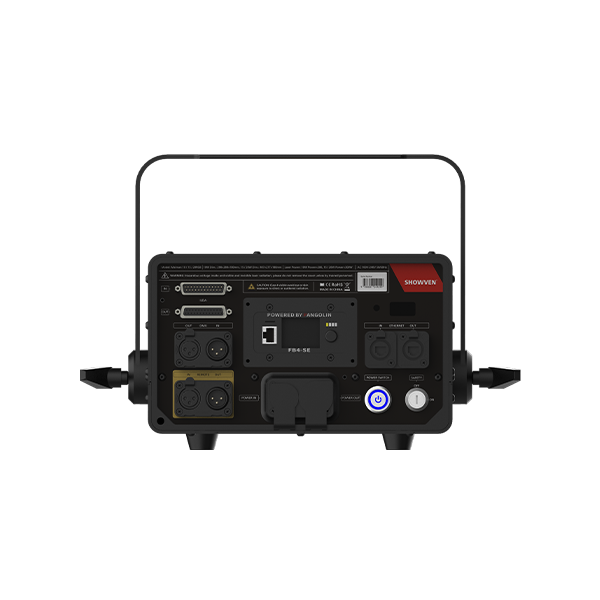

Power Supply: AC100-240V, 50/60Hz Output: 10W R module: Mitsubishi 638nm G module: Nichia 520nm B module: Osram 445nm Scanning System: ±30°, 40K Beam Size: 3.5 ×6.5mm Beam Divergence: <1.0mrad Analogue modulation: 100K, Analog/TTL IP level: IP65 Work Temp.: -20-40℃ Cooling System: TEC Weight: 11kg Dimension: 300×280×174mm System Control: Ethernet, DMX, ILDA, Auto, SD card, Sound,FB4(optional) Compliant with: CE, FDA Safety Features: Safety Switch Key, Remote Emergency Stop System (can be connected in daisy chain), scan-fail safety.
IP65 rated water and dust protection Guaranteed optical output Safety switch key, scan-fail safety Quick locking 360° rotatable handle, easy angle adjustment Compressed light source,spot and fiber optics ensure stronger beam, sharper spot and smaller divergence angle Analog modulation, high linearity and rich beam color TEC temperature control, split refrigeration ensure best working condition of LD Over-temperature protection ensures good performance of optical module components External dimming bracket, dimming will not damage the module cavity environment External TEC cooling module, no thermal conductive silicone grease inside the module to prevent oil and water evaporation from affecting the lens and heat from returning to the light source layer PWM fan control, silent design Realtime internal temperature monitoring and display, over-temperature protection Remote emergency stop function
IP65 rated water and dust protection
