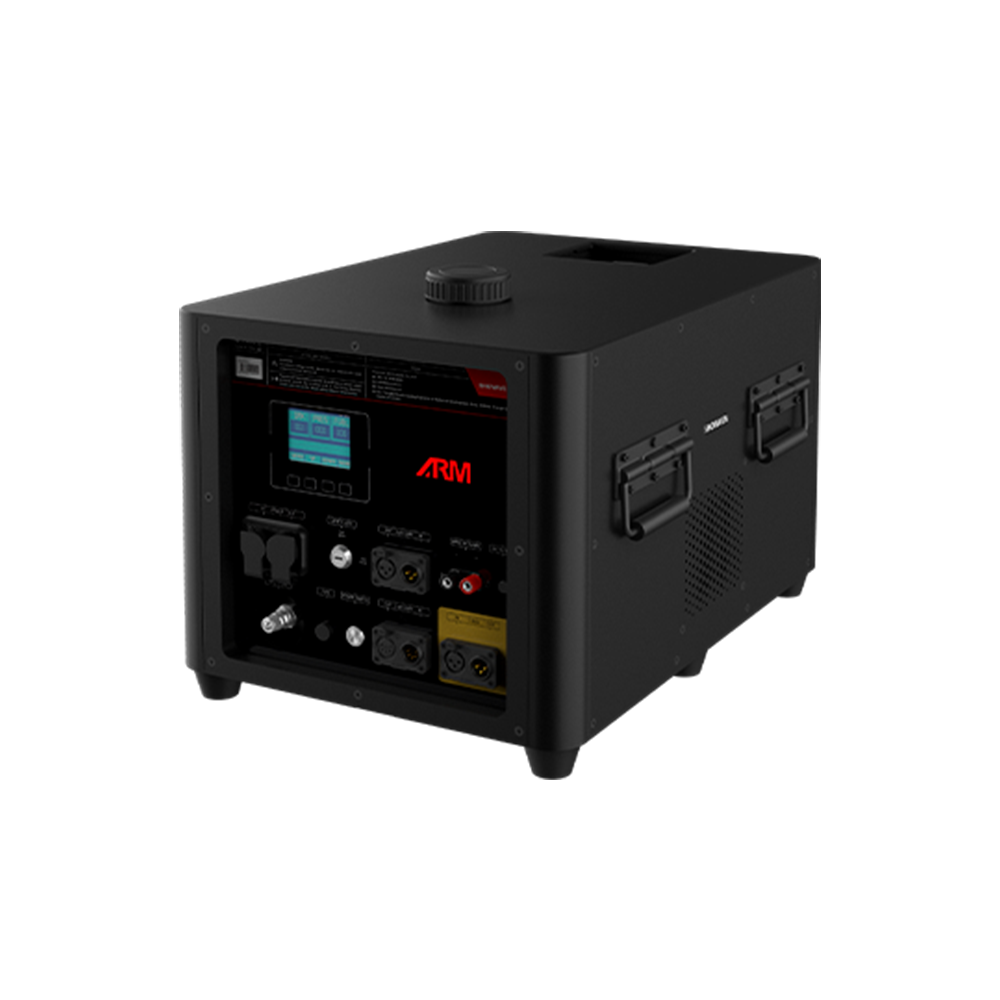

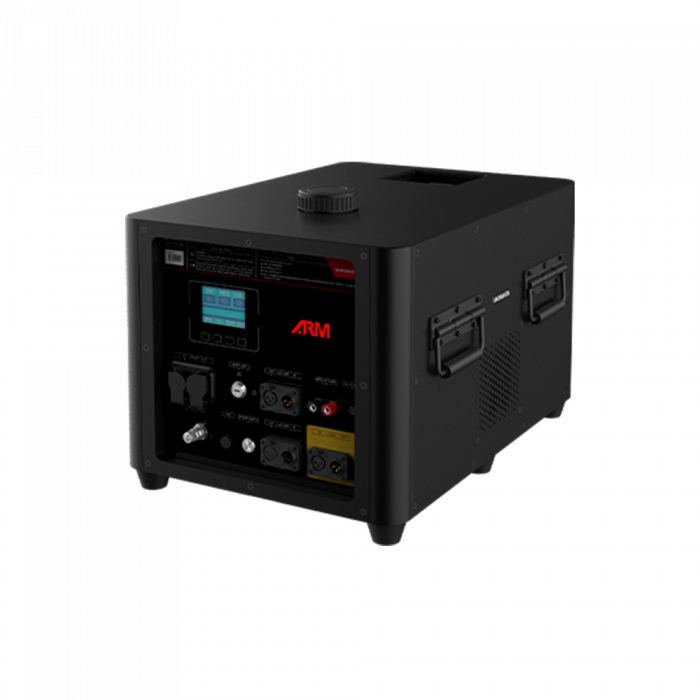

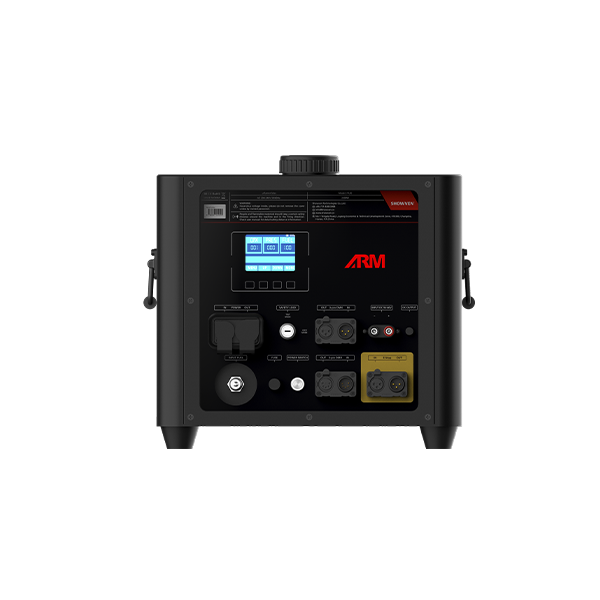

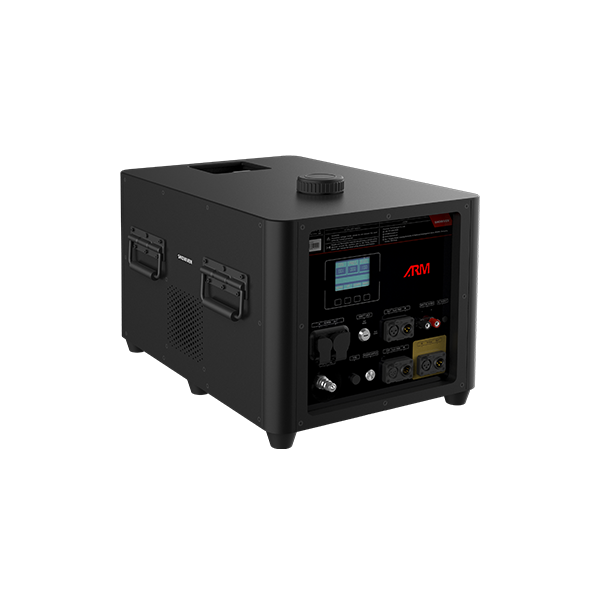

uFlamer ®Max Plus is a customized version of uFlamer® Max, with a firing duration up to 3 seconds, designed for professionals who require longer firing durations.
Dimension: 690 x 475 x 415 mm
Weight: 80kg
Input and Power: 200-240VAC, 50/60 Hz, 2.5KW
Housing Material: 304 Stainless steel
Effect Direction: Vertical
Max. Flame Height (No Wind): Nozzle XXH: 20m
Fuels: ISOPAR G, H, L, M; ISOPROPANOL
Fuel Tank Capacity: 30L
Fuel Consumption Rate: Appr. 1L/s
Interface: NEUTRIK POWERCON TRUE1 IN/OUT;Waterproof 3-pin and 5-pin XLR IN/OUT
Control: DMX, 9-60V Pyro Signal
E-stop: Yes
ARM Indicator Light: Yes
Liquid Level Sensor: Yes
Ignition: High Voltage Electron Ignition * 3
Max.Firing Duration: 3s
Use in Rain: Yes
20m flames Max. Firing duration upto 3s Built-in pump and fuel tank, plug and play system Triple high voltage igniters Flame monitoring function Multi safety configurations: cascadable power cut-off E-stop connector, ARM indicator light, safety switch etc.
