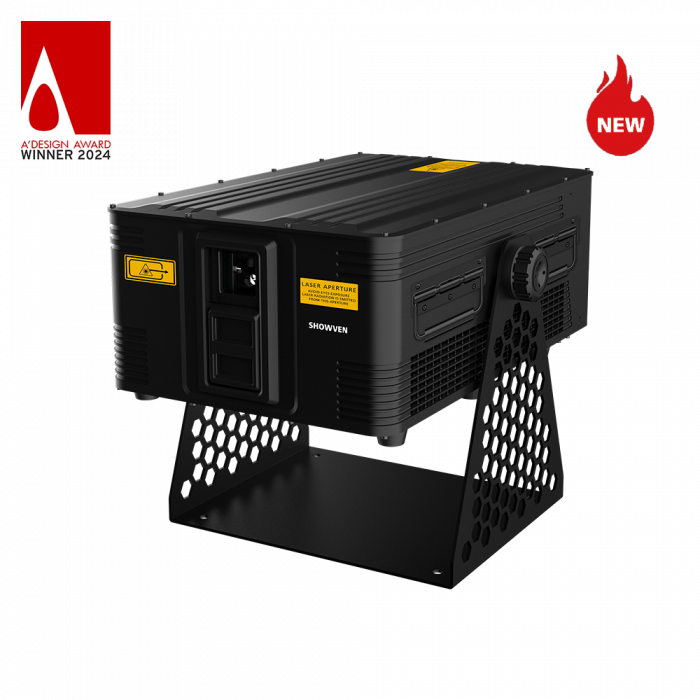

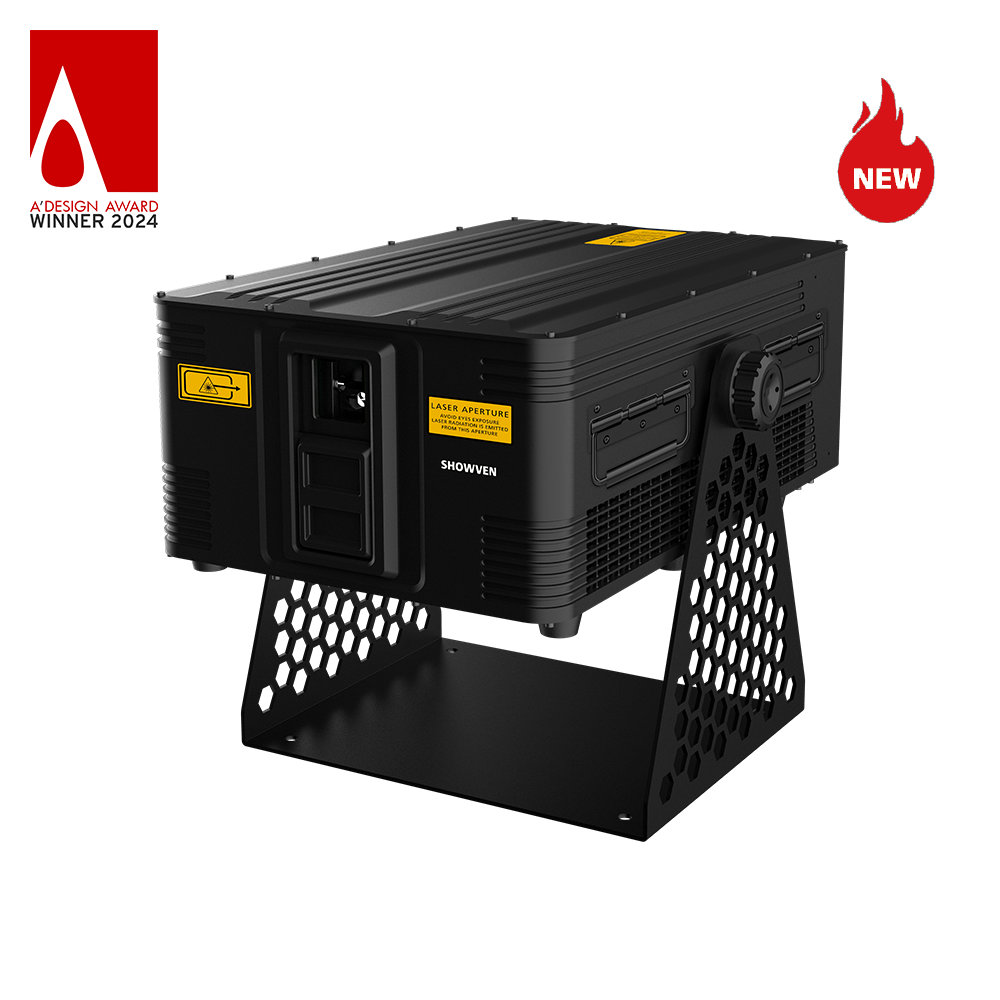

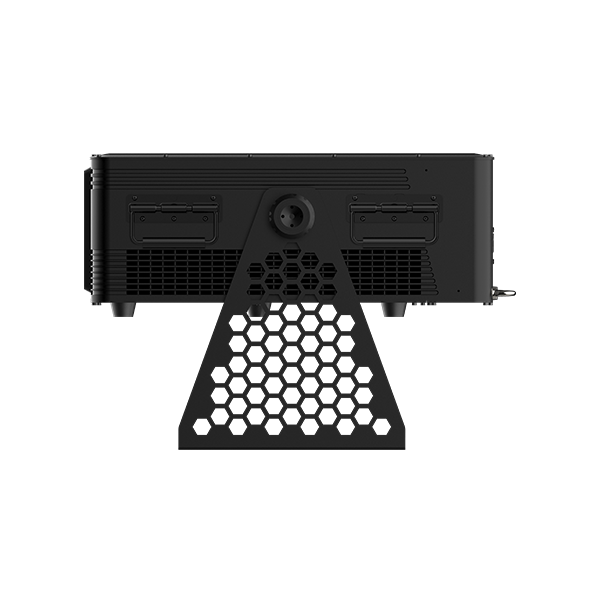

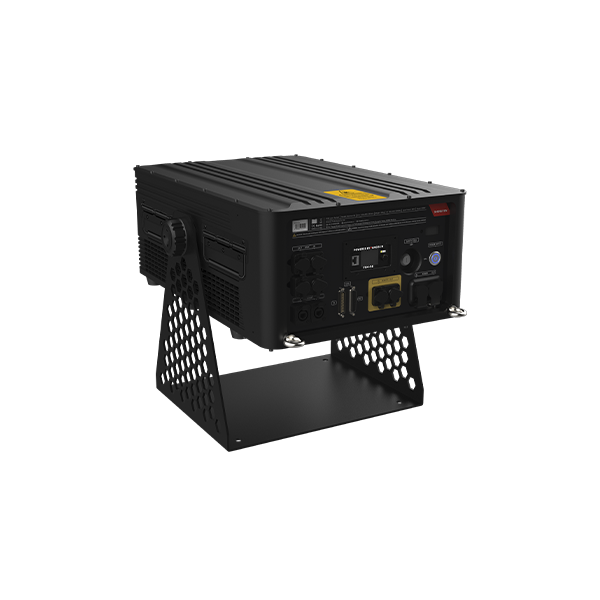

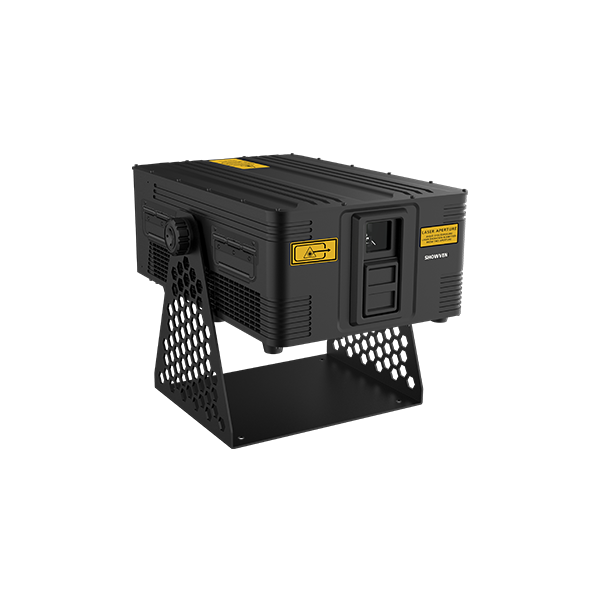

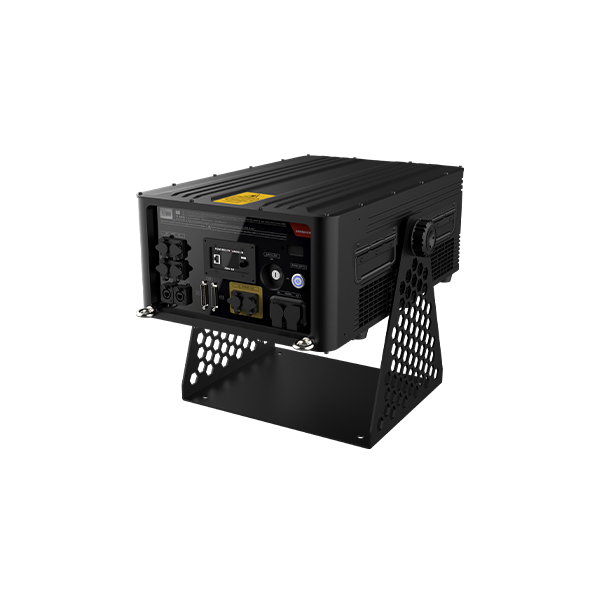

SHOWVEN series full-colour RGB lasers are launched based on our more than 4 years in-depth laser market research. We aimed to bring quality, premium design and cost-effective laser system to the global market. Our Maiman series full-colour RGB lasers with double-layer structure design, IP65 rated enclosure. Pure diode light source guarantee higher reliability and smaller beam divergence angle. Equipped with safety switch key, remote E-stop function etc. safety configurations ensure the safety and controllability of laser use to the greatest extent. To extend the service life of our laser we equipped with PWM fan control, noise reduction design, realtime temperature monitoring and over-temperature protection function.
Specifications:
Power Supply: AC100-240V 50/60Hz
Output: 60W
R module: USHIO 635nm
G module: Nichia 520nm
B module: Osram 445nm
Scanning System: ±20°, 30K
Beam Size: 8×9mm
Beam Divergence: <1.5mrad
Analogue modulation: 100K,Analog/TTL
IP level: IP65
Cooling System: Enhanced TEC
Work Temp.: -20-40℃
Weight: 30kg
Dimension: 460×318×214mm
System Control: Ethernet, DMX, ILDA, Auto, SD card, Sound,FB4(optional)
Compliant with: CE
Safety Features: Safety Switch Key, Remote Emergency Stop System (can be connected in daisy chain), scan-fail safety etc.
IP65 rated water and dust protection Guaranteed optical output Safety switch key, scan-fail safety Quick locking 360° rotatable handle, easy angle adjustment Compressed light source,spot and fiber optics ensure stronger beam, sharper spot and smaller divergence angle Analog modulation, high linearity and rich beam color TEC temperature control, split refrigeration ensure best working condition of LD Over-temperature protection ensures good performance of optical module components External dimming bracket, dimming will not damage the module cavity environment External TEC cooling module, no thermal conductive silicone grease inside the module to prevent oil and water evaporation from affecting the lens and heat from returning to the light source layer PWM fan control, silent design Realtime internal temperature monitoring and display, over-temperature protection Remote emergency stop function
IP65 rated water and dust protection
