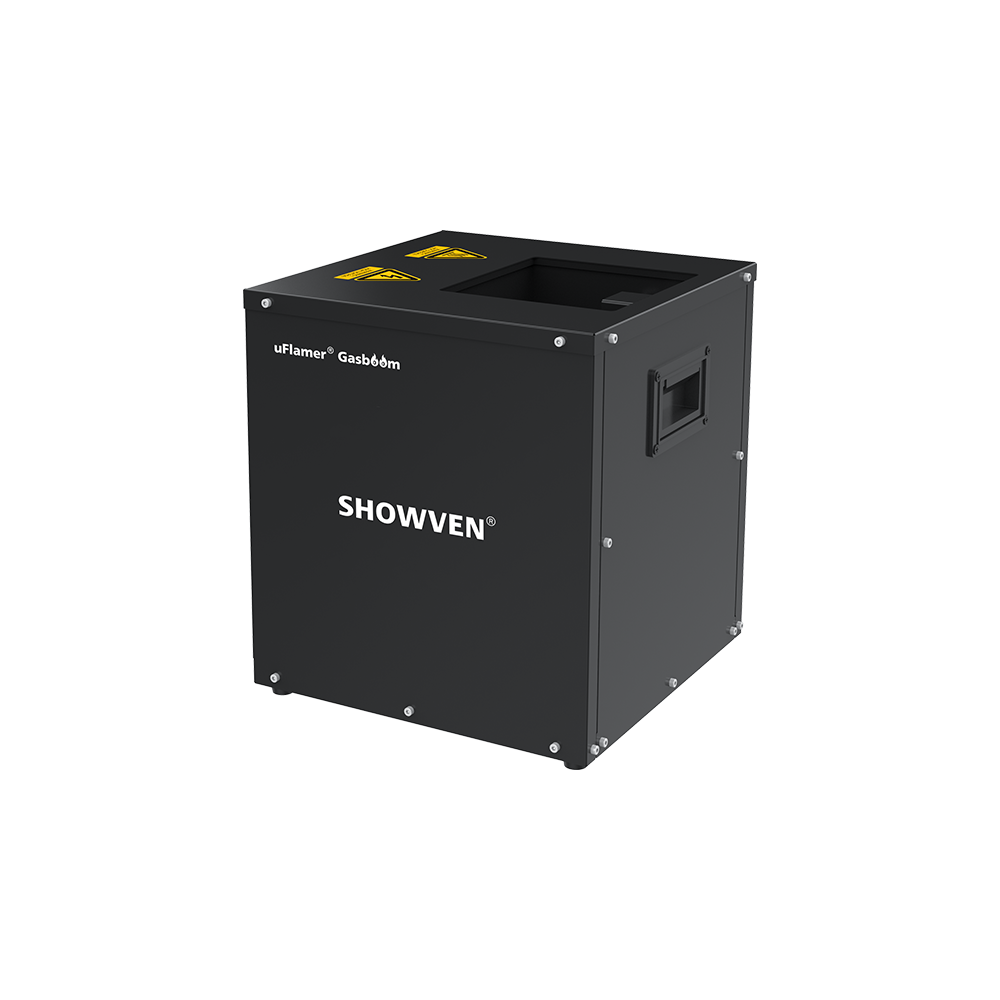

uFlamer Gasboom

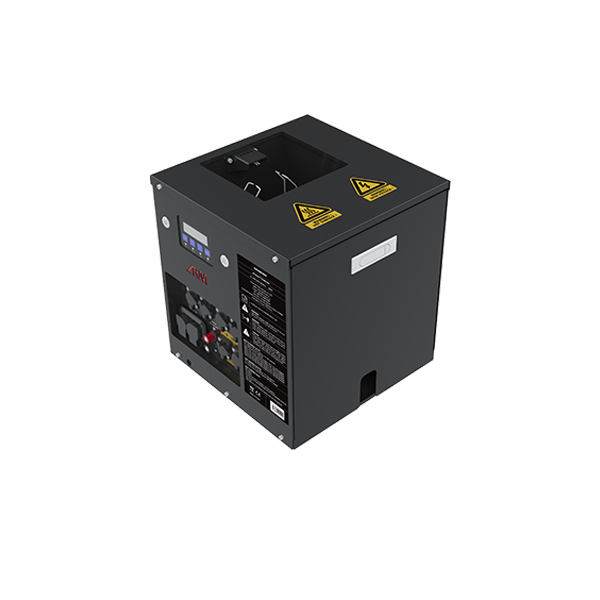

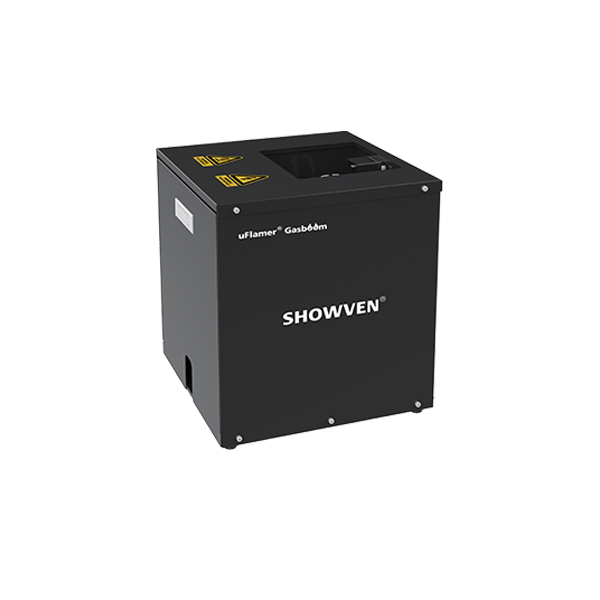

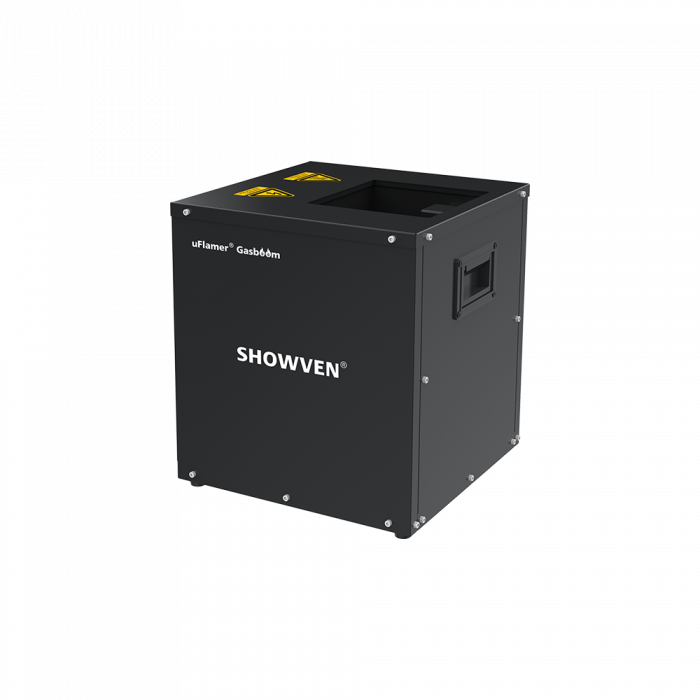

uFlamer Gasboom is the safest gas flamer ever on the market, with a series of safety features including 0.1s super sensitive flame monitoring, cascadable power cut-off E-stop connector, dual high voltage electron igniter, patented “SFT” technology, safety lock, dual magnetic valves, shut-off valve, ARM warning light etc. With 5 types of nozzles optional, 2/4 built-in gas cartridges positions, flame effect height from 2 to 8m ensure versatile applications for both indoor and outdoor events.


Dimension: 320 x 310 x 325 mm
Weight: 13kg
Input and power: 100-240VAC, 50/60 Hz; 200W
Housing Material: 304 stainless steel
Effect Direction: Vertical

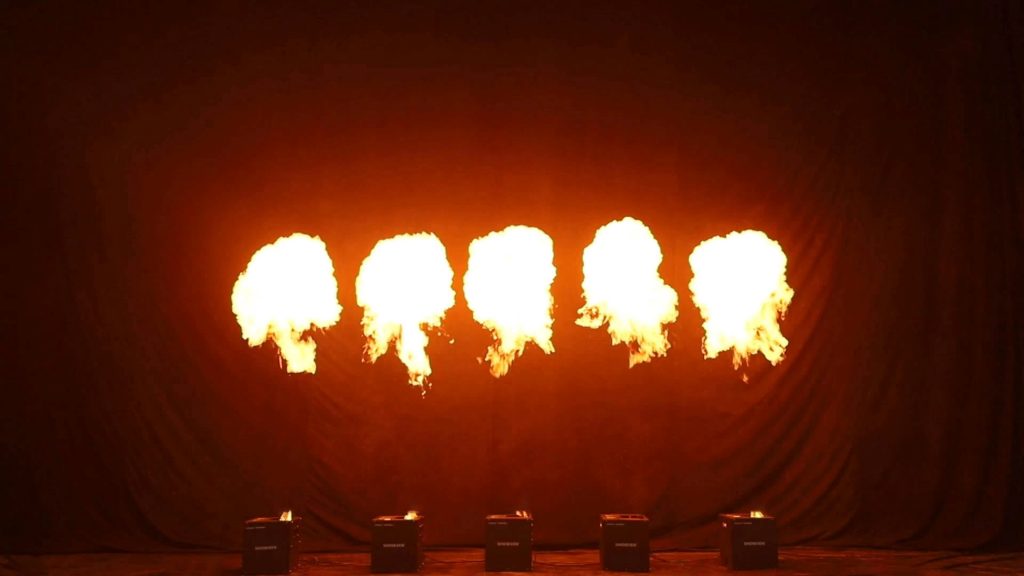

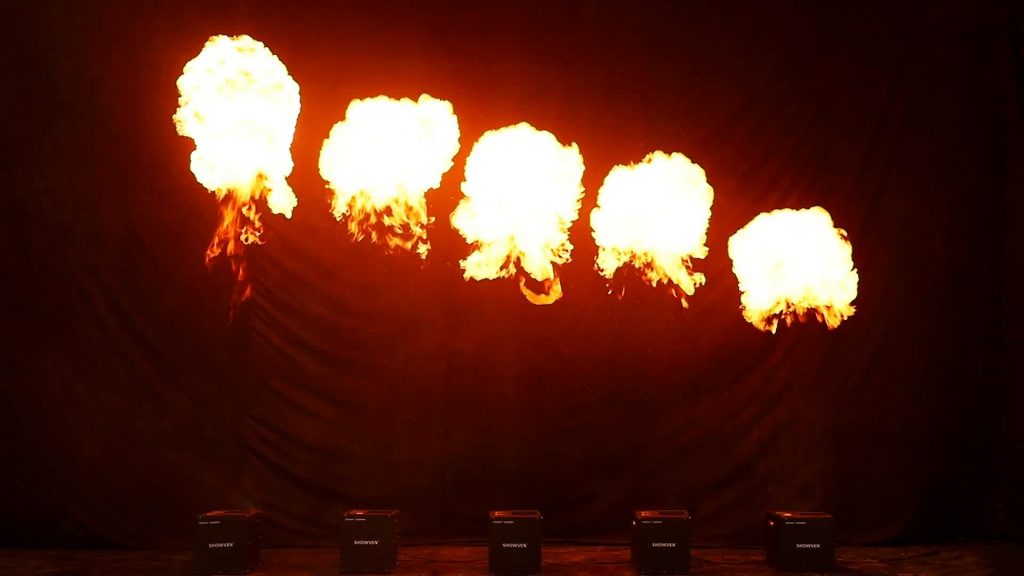

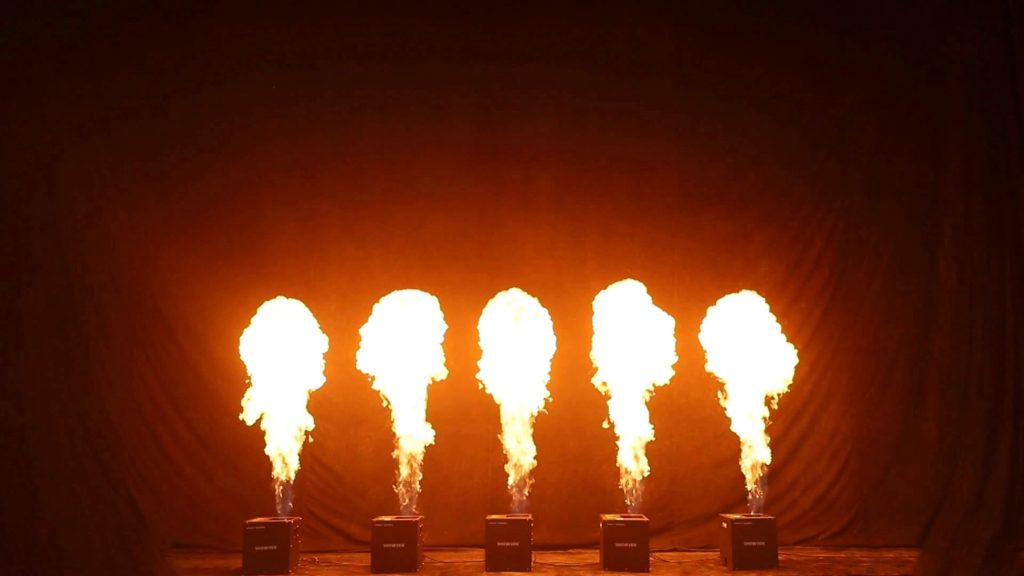

Flame Height: 2-8m (nozzle size, firing time etc.)
E-Stop Interface: Yes, can be connected in series
Dual Magnetic Valves: Yes, connect in series
High Sensitive Flame Monitoring: Yes, sensitivity up to 0.1s

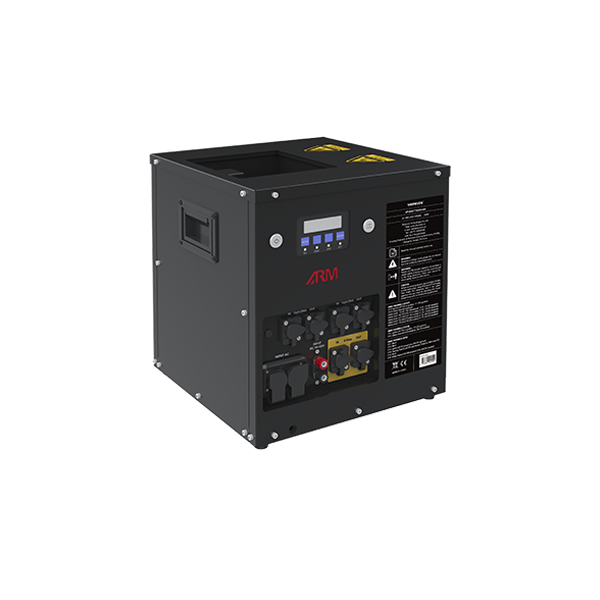

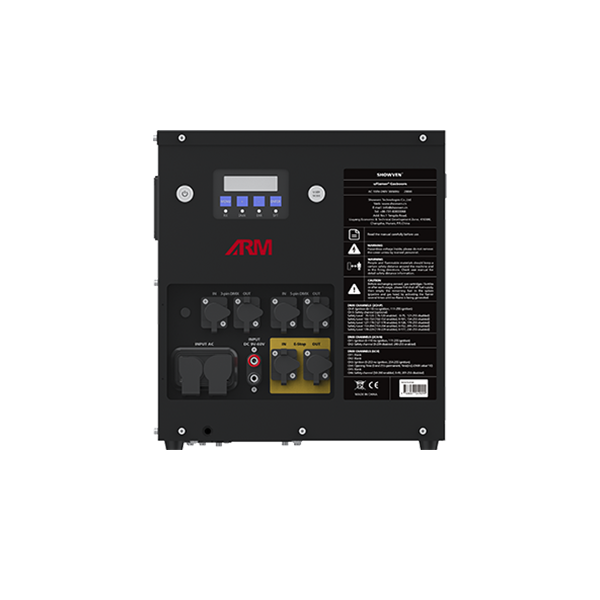

Interface: NEUTRIK POWERCON TRUE1 IN/OUT; Waterproof 3-pin and 5-pin XLR IN/OUT
Control: DMX 512, 9-60V voltage input; Wireless, with Wirelss DMX Receiver (5-PIN DMX IN with DC5V power supply)
Ignition: High Voltage Electron Ignition×2
Built-in Battery Design: Yes, 4×18650 Lithium cells
Waterproof Level: Can be used in heavy rain
Firing Duration: 0.1-10s
Fuel: LPG propane or butane gas, gas cartridges bottle, aerosol cartridges
Cartridge Holder: Twin cartridge holder with 2 shut-off valves and 2 non-return valves; Quadruple cartridge holder with 4 shut-off valves and 4 non-return valves (optional)
Micro Filter: Yes, installed between shut-off and non-return valves
Category: FLAMER


Features and advantages

Patented “SFT” technology allows Gasboom with stronger burst and no flame tails after firing even in low temperature environment
Super sensitive flame monitoring ensures that the fuel supply is switched off if the flame does not ignite after as short as a 0.1s firing duration
Cascadable power cut-off E-stop connector, all flamers can be controlled with a single E-stopper box
Dual high voltage electron igniter ensure successful ignition
Dual magnetic valves installed in series for double safety
Individual shut-off valve for each canister
Built-in battery design
2 / 4 (optional) built-in gas cartridges positions
Different nozzles optional, 2-8m effects
Stainless steel housing, reliable and durable
Waterproof design, can be used in heavy rain
Safety lock with switchable test mode, safer for service and testing
Tilt protection, the tilt sensor will be activated when machine slant Over 45°
