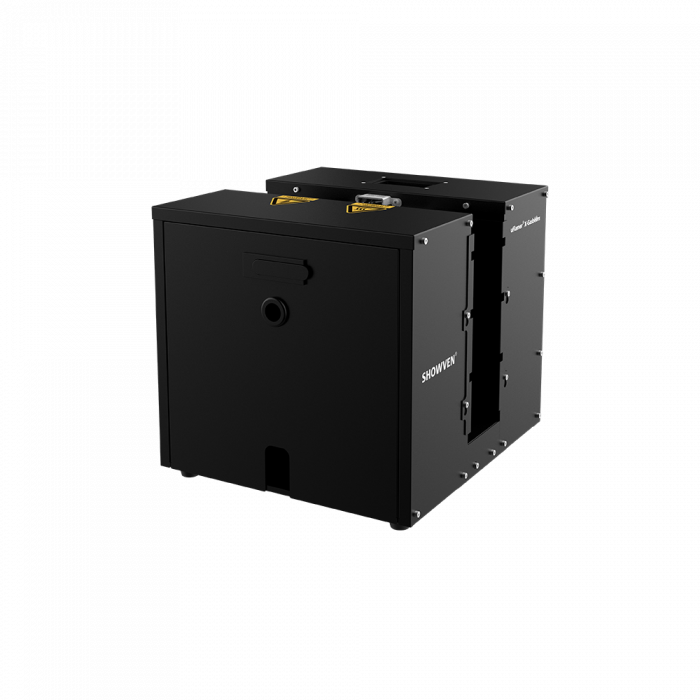

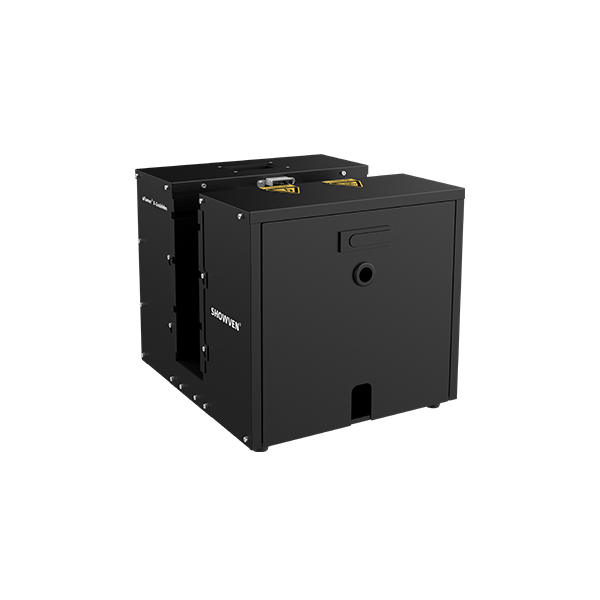

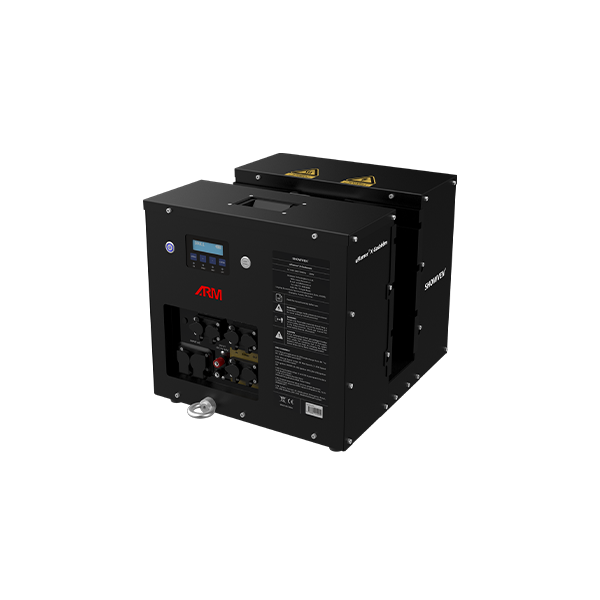

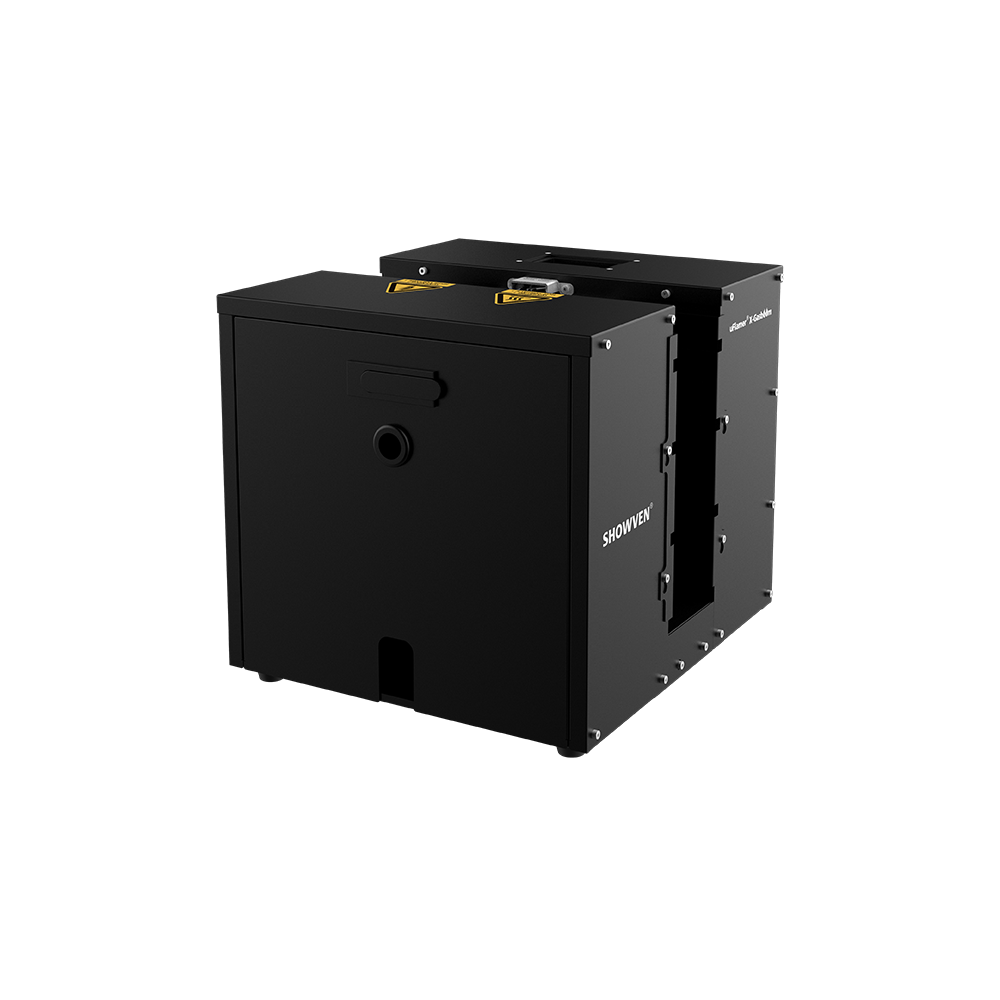

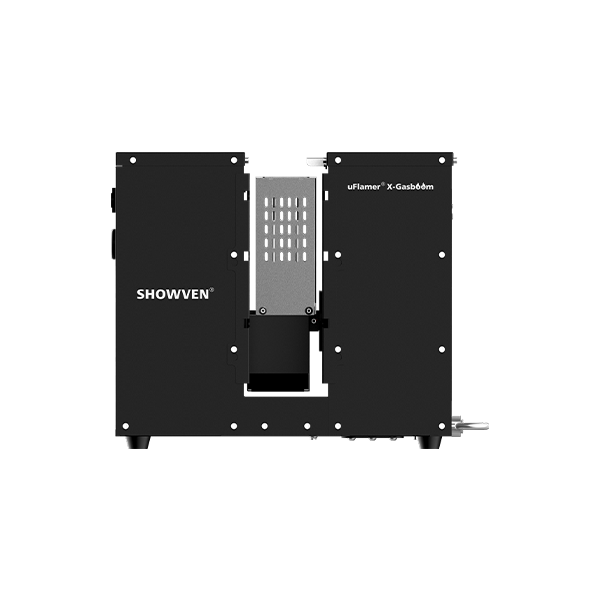

uFlamer® X-Gasboom

uFlamer® X-Gasboom is the first gas flamer with 180° waving angles, it inheriting all the safety designs of uFlamer Gasboom including 0.1s super sensitive flame monitoring, cascadable power cut-off E-stop connector, dual high voltage electron igniter, safety lock, dual magnetic valves, shut-off valve, ARM warning light etc. With 5 types of nozzles optional, 2/4 built-in gas cartridges positions, flame effect height from 2 to 8m ensure versatile applications for both indoor and outdoor events.


Dimension: 400 x 360 x 350mm
Weight: 20kg
Input and Power: 100-240VAC, 50/60 Hz 200W
Housing Material: 304 stainless steel
Effect Direction: 180° (±90°)
Flame Height: 2-8m (nozzle size, firing time, temp. etc)
E-Stop Interface: Yes, can be connected in series
Dual Magnetic Valves: Yes, connect in series
High Sensitive Flame Monitoring: Yes, sensitivity up to 0.1s

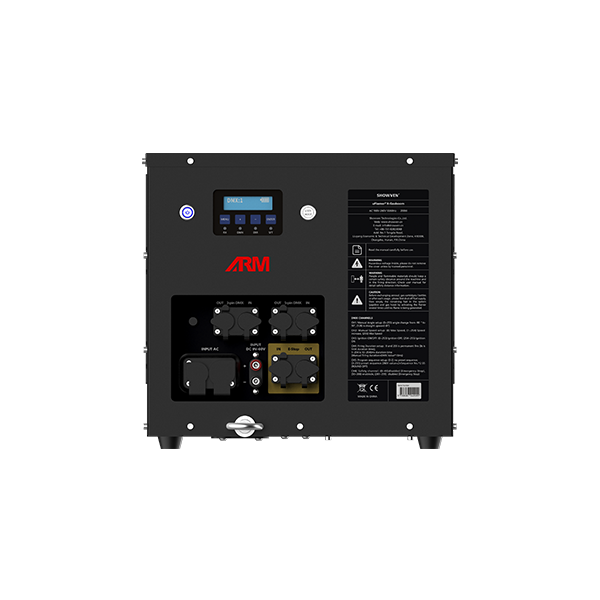

Interface: NEUTRIK POWERCON TRUE1 IN/OUT;Waterproof 3-pin and 5-pin XLR IN/OUT
Control: DMX 512, 9-60V voltage input Wireless, with Wirelss DMX Receiver (5-PIN DMX IN with DC5V power supply)
Ignition: High Voltage Electron Ignition * 2
Built-in Battery Design: Yes, 8*18650 Lithium cells
Waterproof Level: Can be used in heavy rain
Firing Duration: 0.1-30s
Fuel: LPG propane or butane gas, gas cartridges bottle, aerosol cartridges
Cartridge Holder: Twin cartridge holder with 2 shut-off valves and 2 non-return valves;Quadruple cartridge holder with 4 shut-off valves and 4 non-return valves (optional)
Micro Filter: Yes, installed between shut-off and non-return valves

uFlamer® X-Gasboom USER MANUAL Download



Features and advantages

The first gas flamer with 180° waving angles
Inheriting all the safety designs of uFlamer Gasboom
Super sensitive flame monitoring
Cascadable power cut-off E-stop connector, all flamers can be controlled with a single E-stopper box
Safety lock with switchable test mode, safer for service and testing
Dual high voltage electron igniter ensure successful ignition
Dual magnetic valves installed in series for double safety
2 / 4 gas cartridges holder optional, support multiple gas cartridges
Individual shut-off valve, non-return valve and filter for each canister
Waterproof design, can be used in heavy rain
Different nozzles optional, 2-8m effects
Built-in 18650 battery design
Waving motor with angle block detection and memory function
