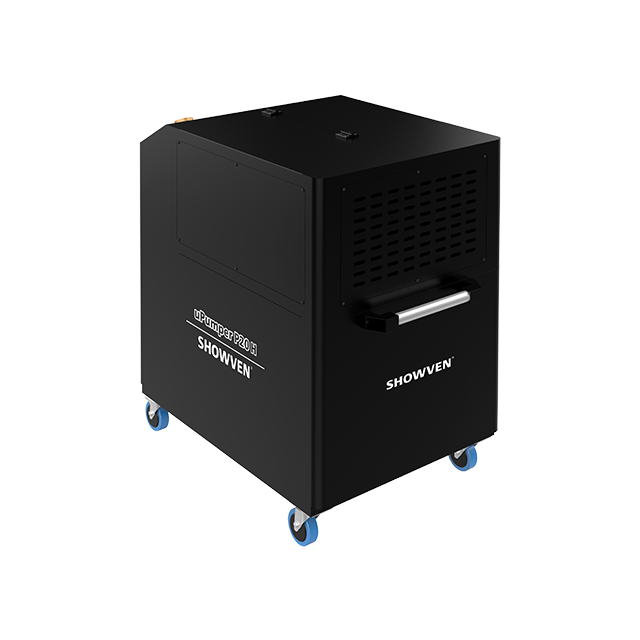

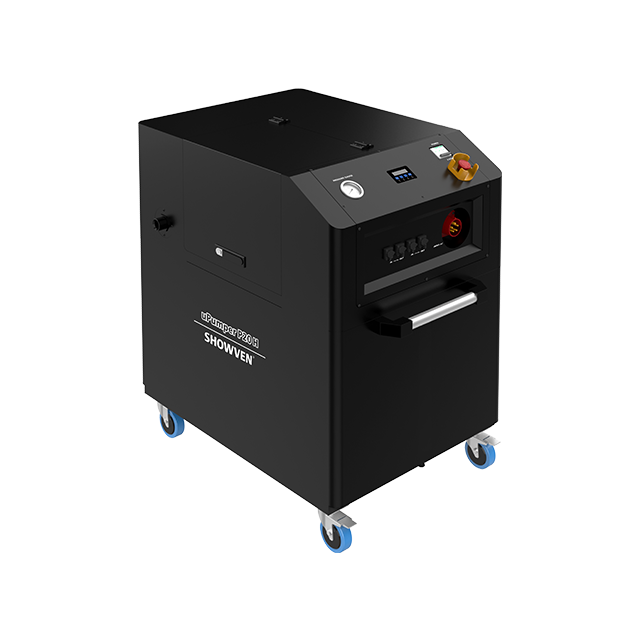

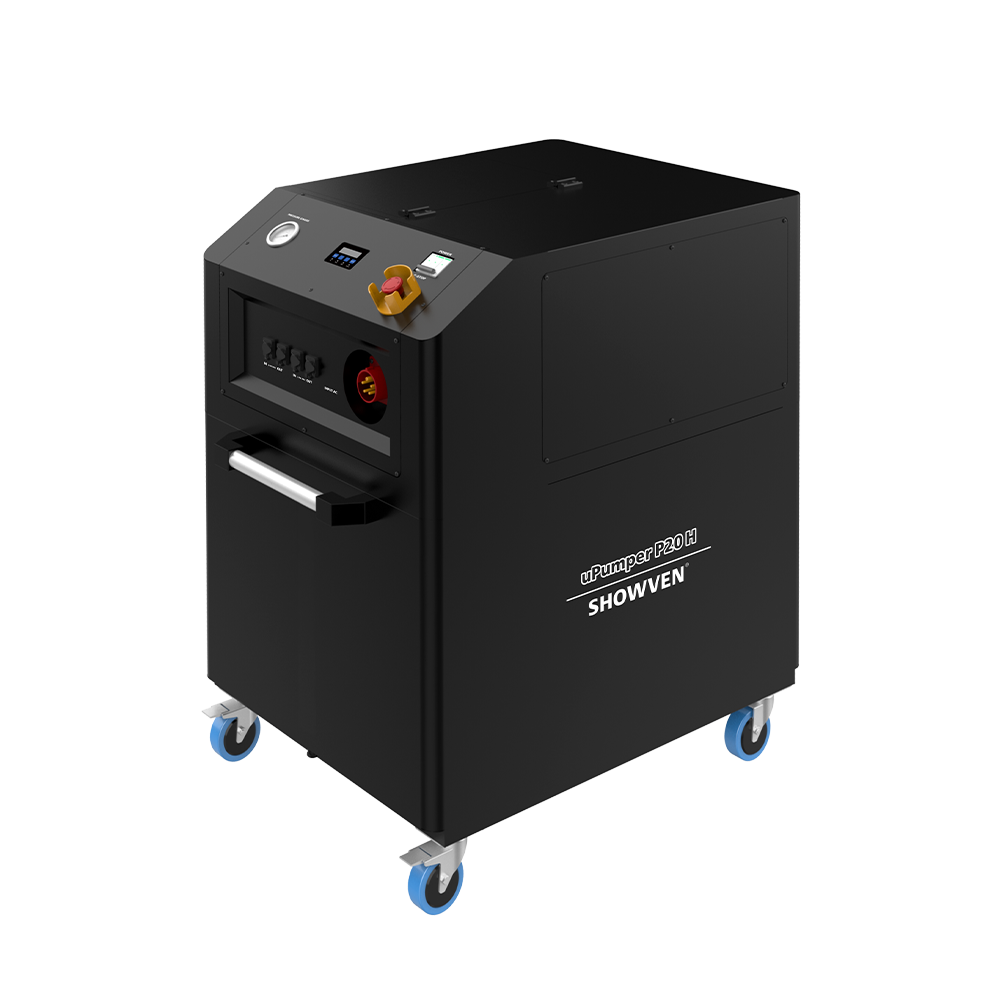

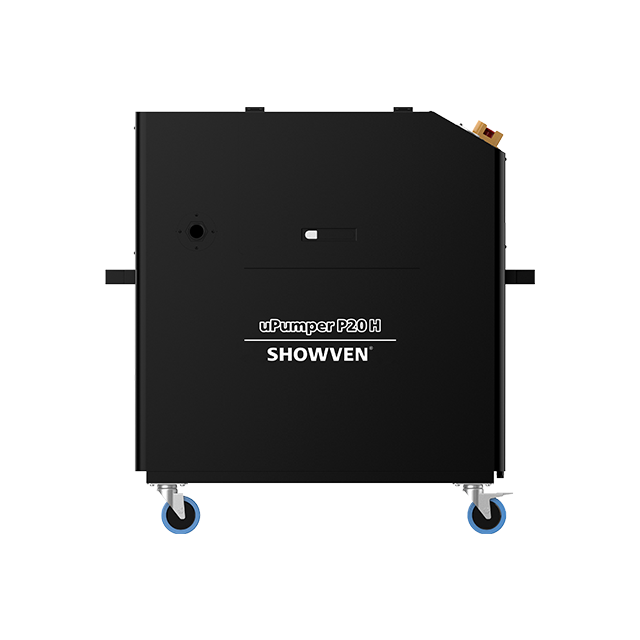

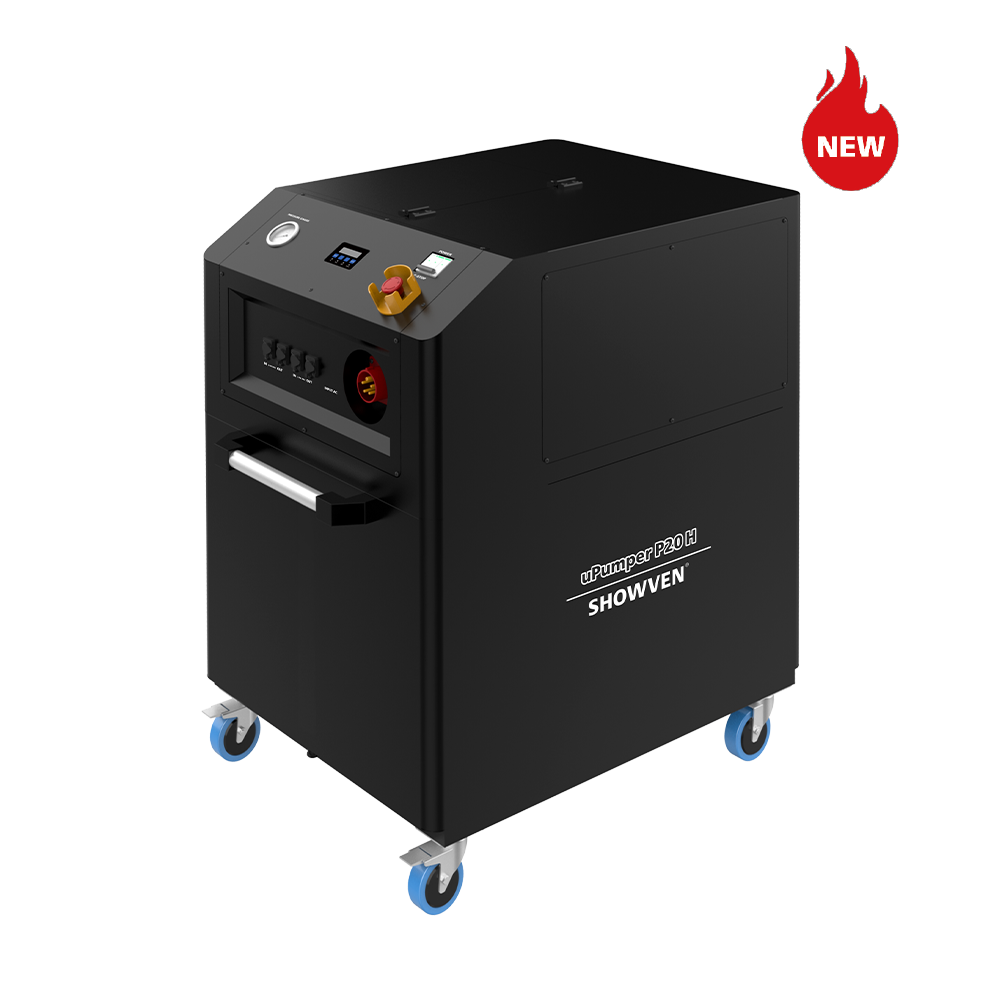

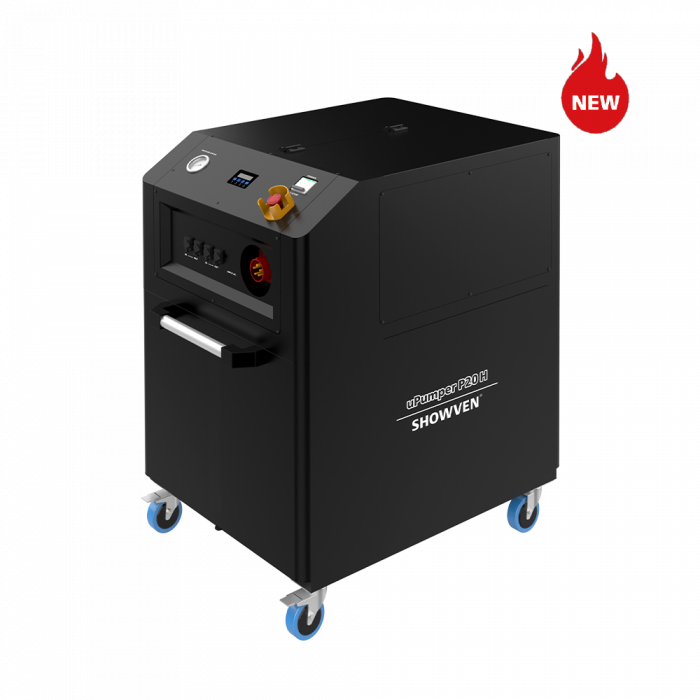

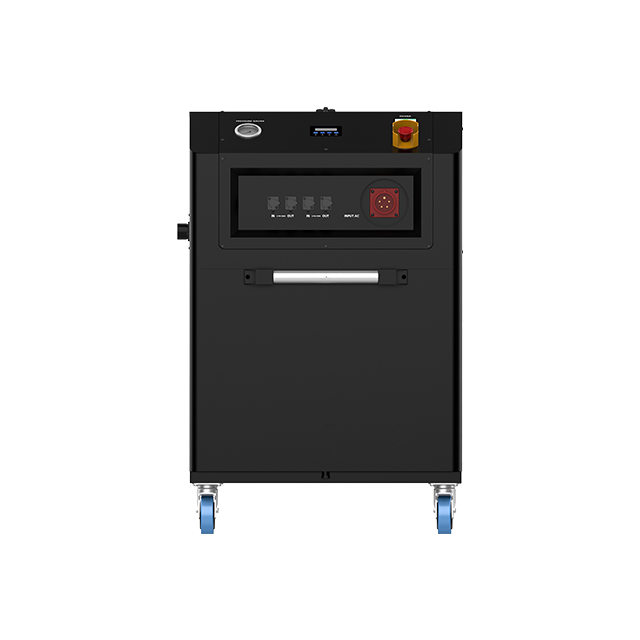

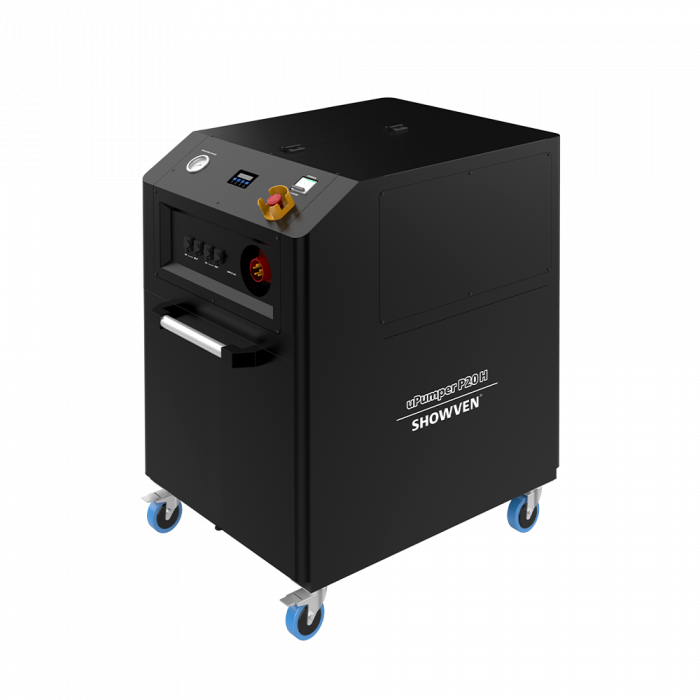

Pump Station – uPumper® P20H

SHOWVEN® FLAME SYSTEM SHOWVEN 18m FLAME SYSTEM is a hydraulic based flame effect solution for project or truss mounted installations. It is consist of flame head X20, pump station P20H, accumulator model and accessories such as hoses, cables etc. It can easily achieve remote fuel supply with the pump station and no nitrogen tank needed.


Dimension: 1100×736×1095 mm
Weight: 285kg
Housing material: 304 stainless steel
Work power: 10KW
Tank capacity: 250L
Pump output: 110L/min
Supported X20 heads: 2-3 heads
Work TEMP.: -20 – 50℃
Installation suggestions: The horizontal distance between the flame head and P20H is recommended to be within 200m, and the vertical height is recommended to be within 30 meters (can be customized according to the actual situation)
Category: FLAMER®


Features and advantages

Reinforced 304 stainless steel housing
Remote fuel and pressure supply
Built in pump, no Nitrogen tank needed
250L extra large fuel tank
Support  2-3 units uFlamer X20
Electronic digital fuel level display
Configured with pressure monitoring
Intelligent solenoid valve block design ensure system pressure under control
