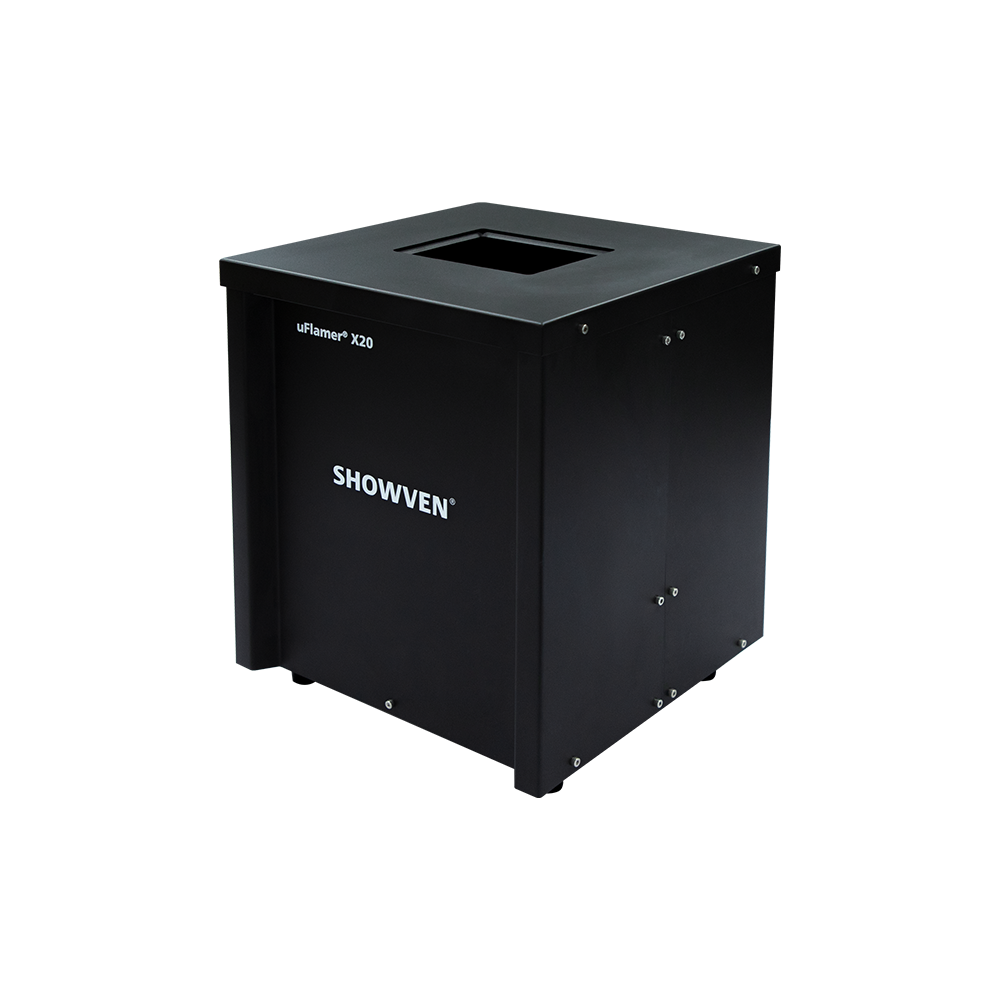

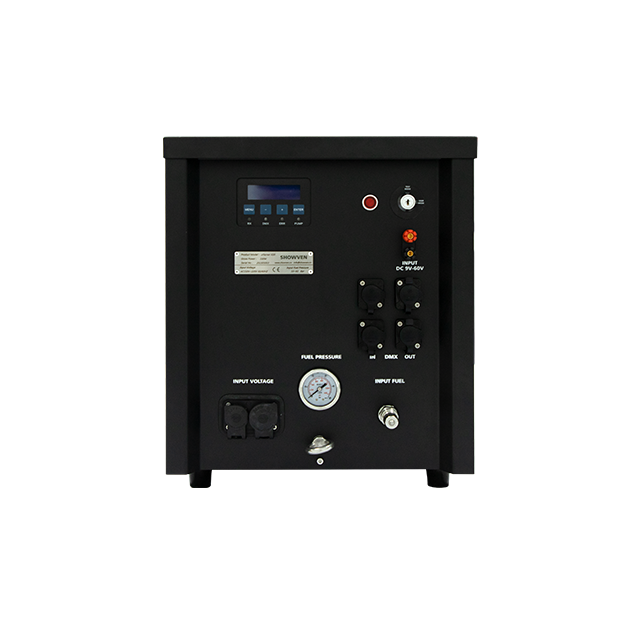

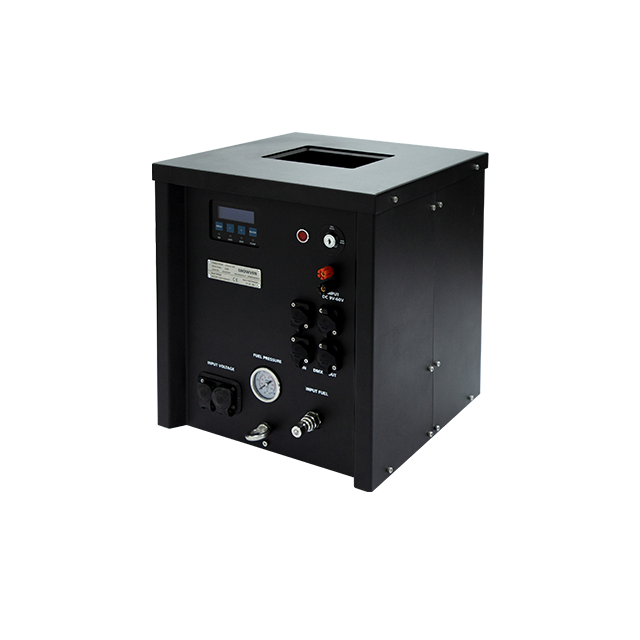

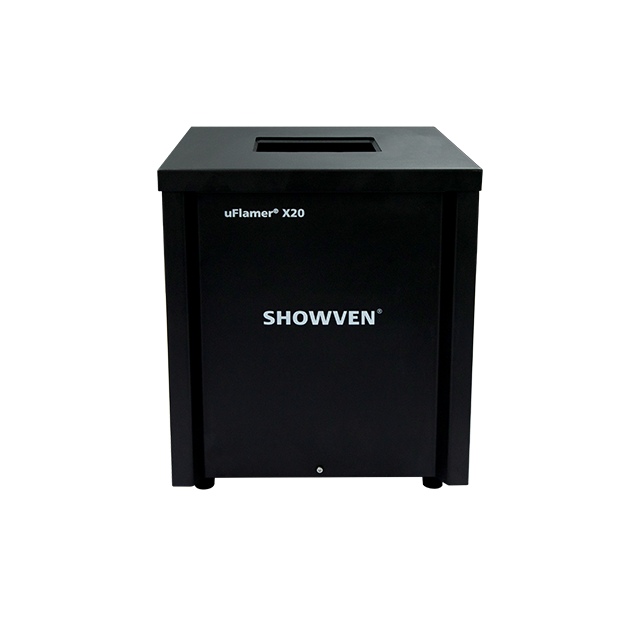

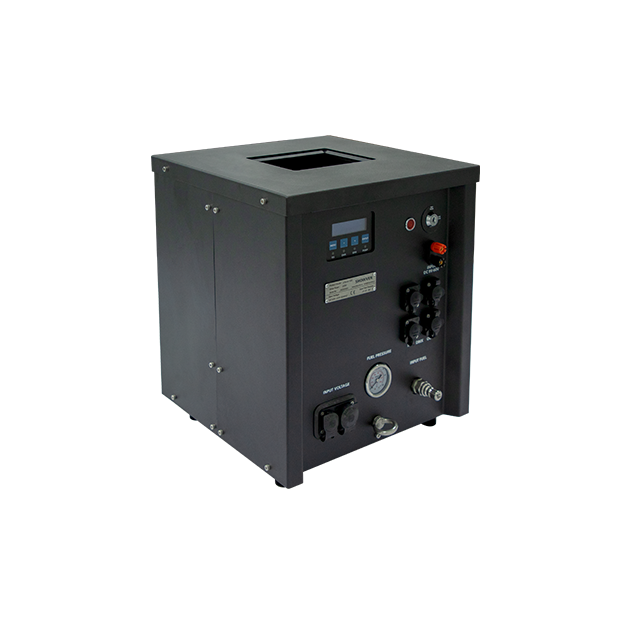

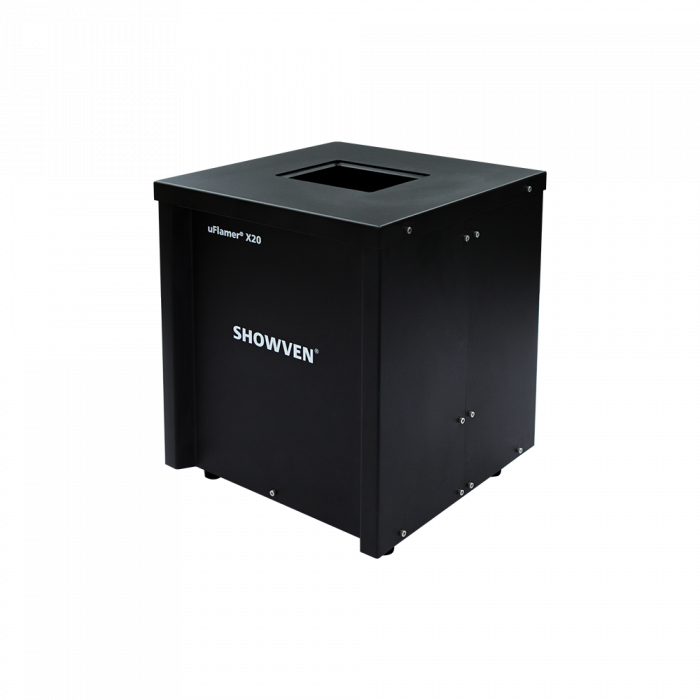

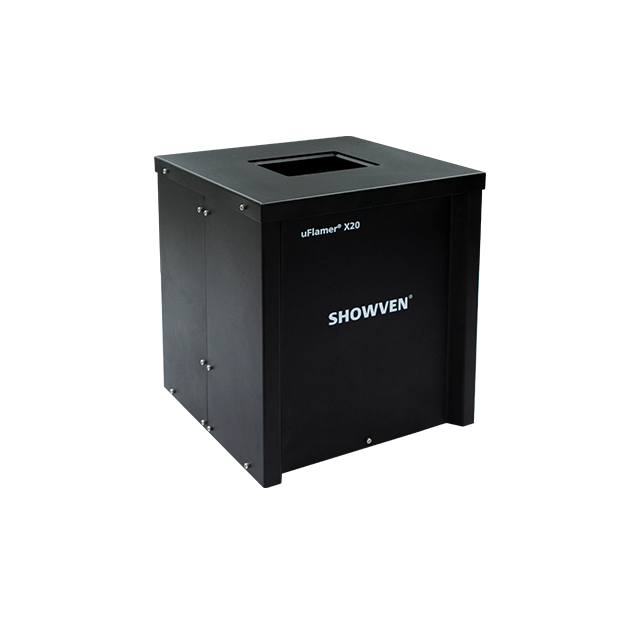

Flame Head – uFlamer® x20

SHOWVEN 18m FLAME SYSTEM is a hydraulic based flame effect solution for project or truss mounted installations. It is consist of flame head X20, pump station P20H, accumulator model and accessories such as hoses, cables etc. It can easily achieve remote fuel supply with the pump station and no nitrogen tank needed.

Specifications:

Dimension:330 x 330 x 320 mm
Weight:18 kg
Housing material:304 stainless steel
Input:AC100-240V, 50/60Hz
Work power:100W
Flame height:16-18m(no wind)
Usage in Rain: Yes
Fuel consumption:1000ml/s
Ignition: Triple, high voltage electron ignition
Control: DMX, 9-60V pyro signal
Quick Couplers: ISO7241B G1/4 male
Work pressure range: 40-60Bar
Firing Angle: Vertical Up
Installation Direction: Vertical Up
Fuel: ISOPAR L (if use with uPumper P20H)
Pressure Gauge: Yes, mechanical
Min.Firing Duration: 0.2s
Max.Firing Duration: 1s
Category: FLAMER
Category:

Description

Features and advantages

Triple igniter ensure successful ignition
Flames up to 18m
Reinforced 304 stainless steel housing
DMX / 9-60V pyro control
