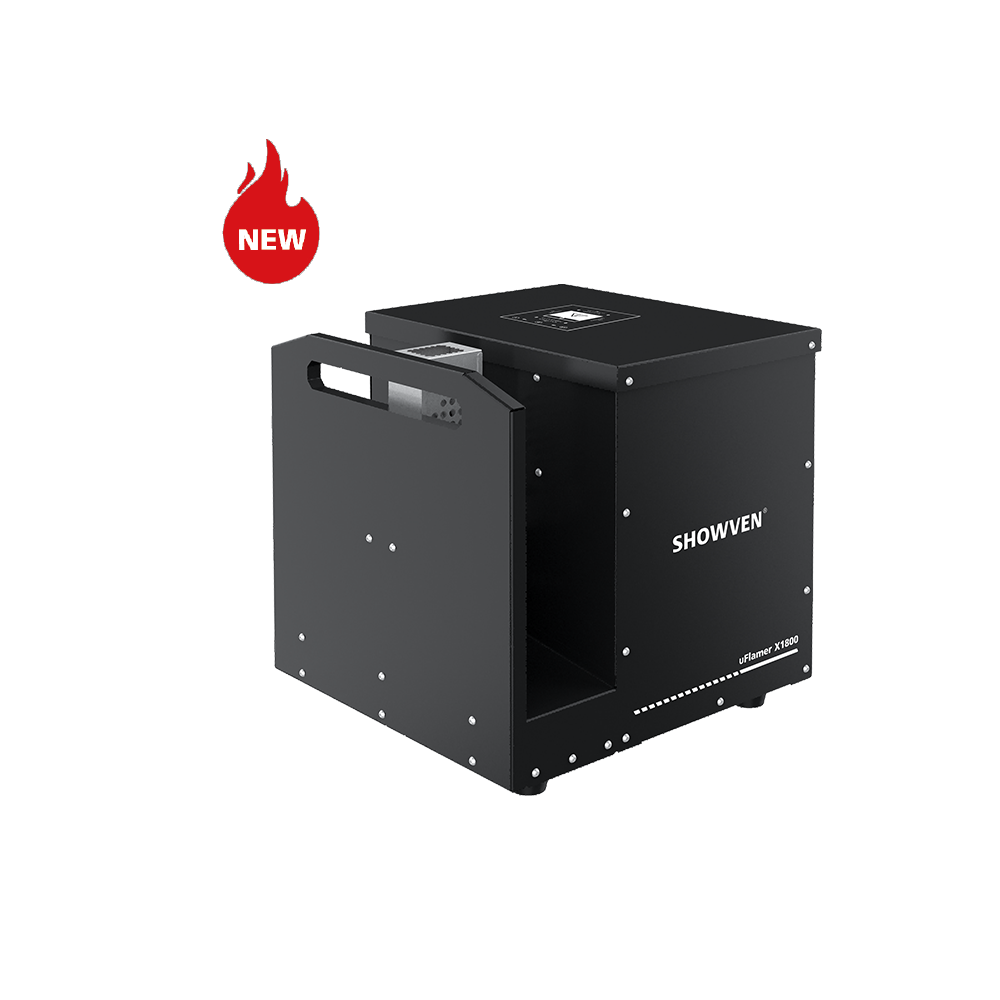

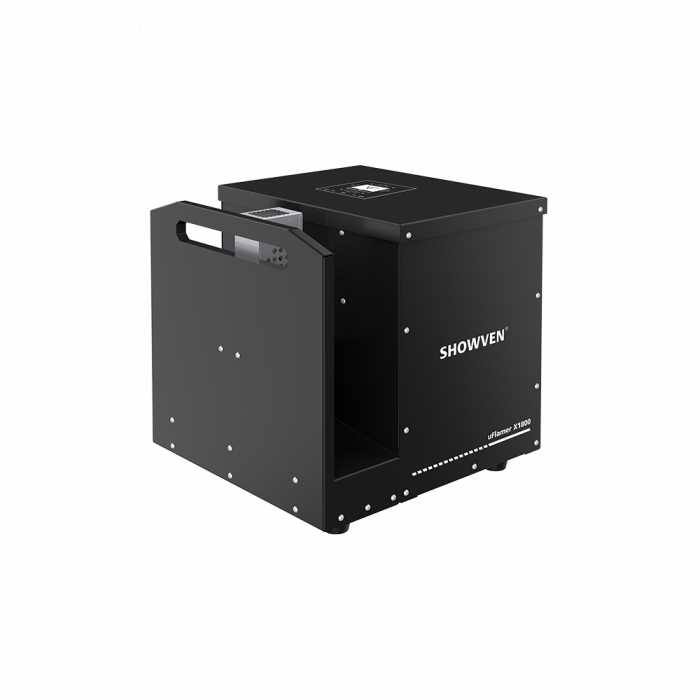

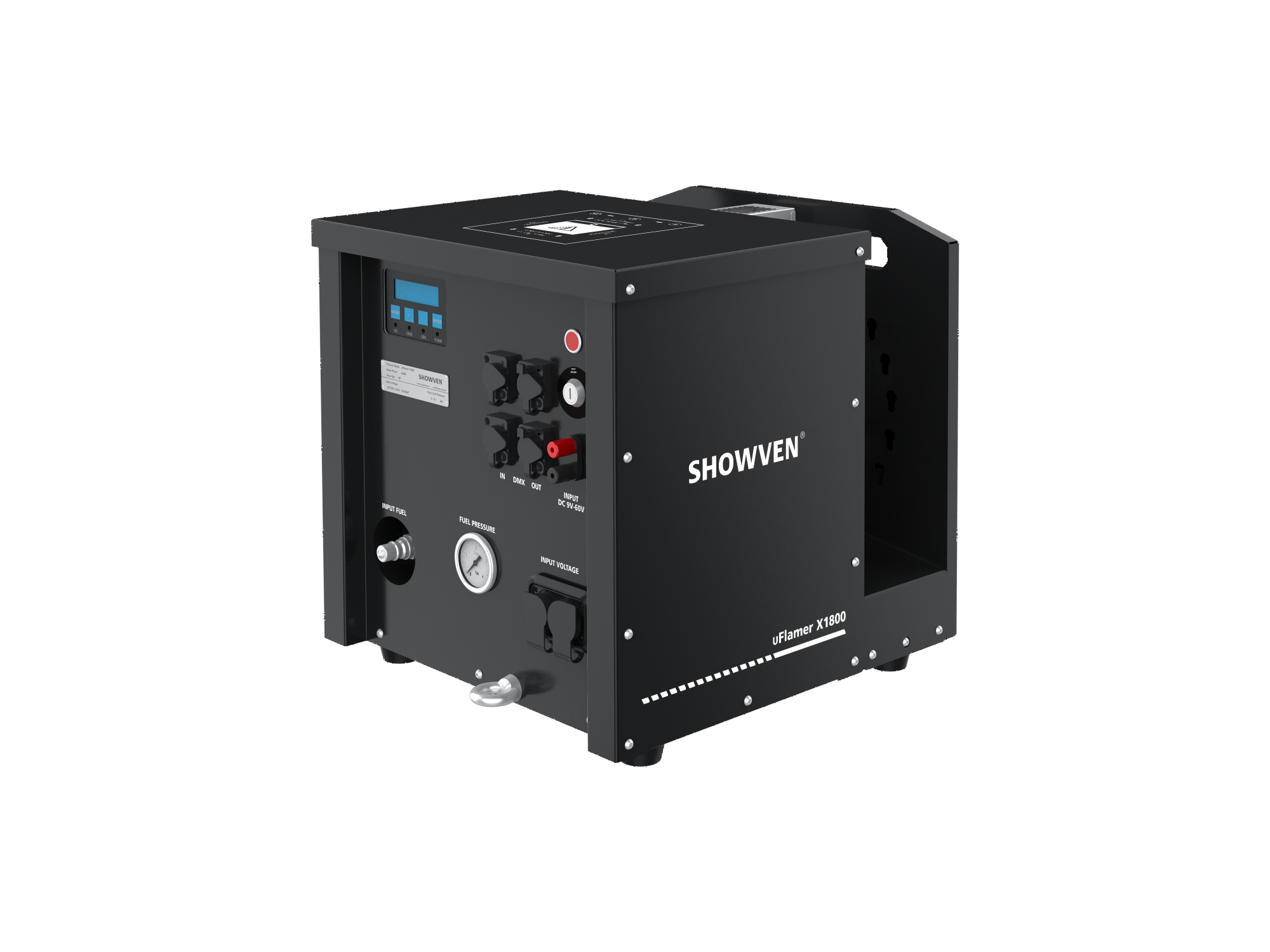

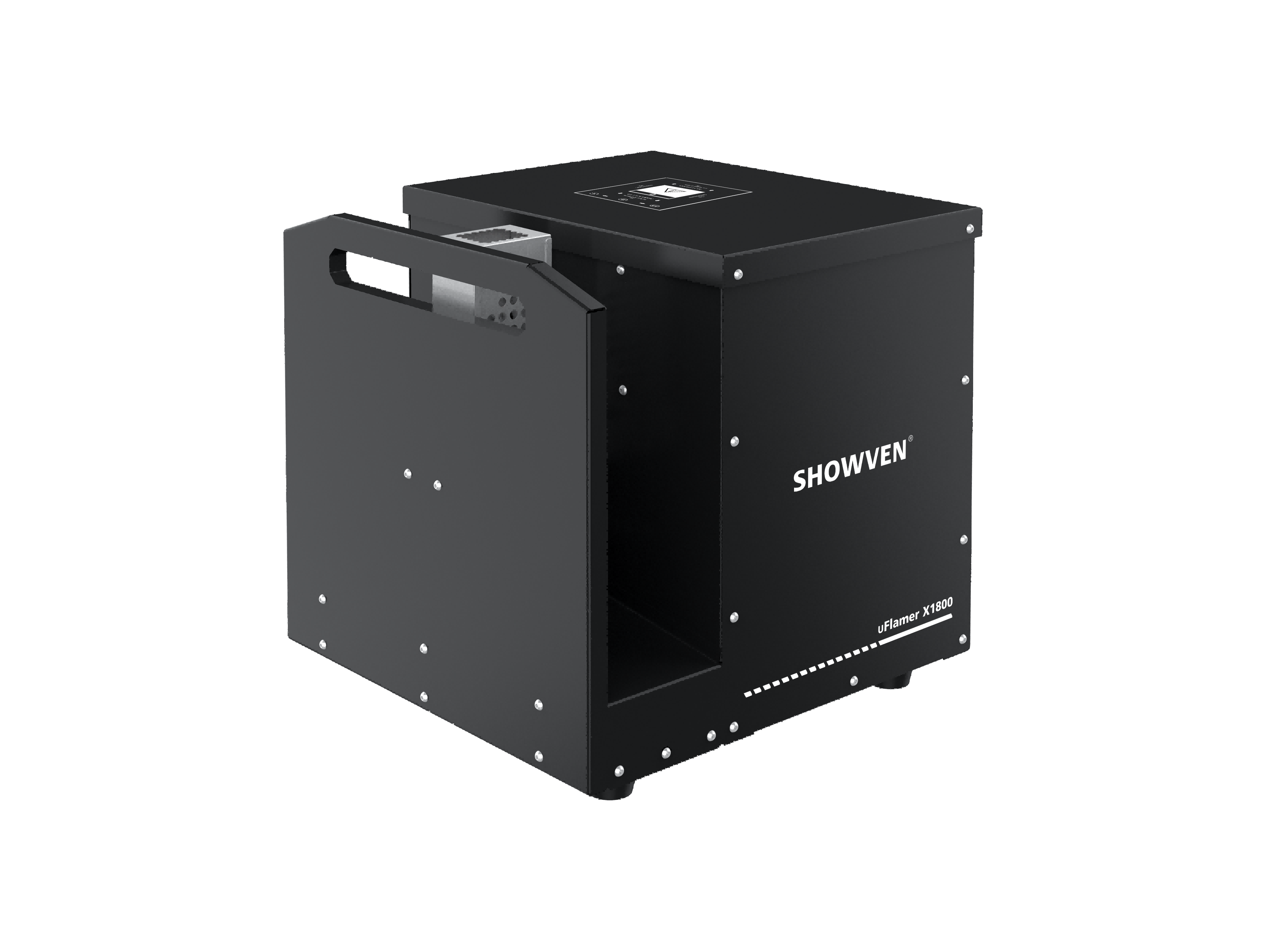

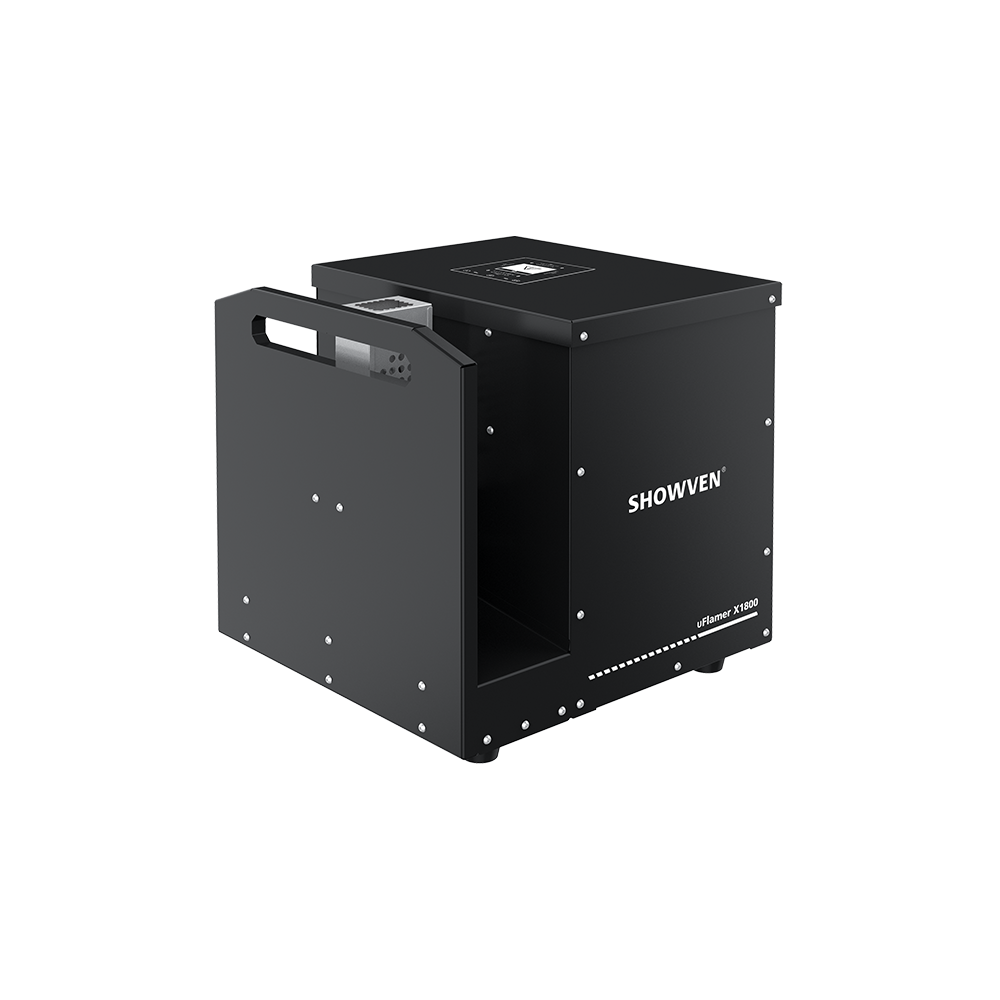

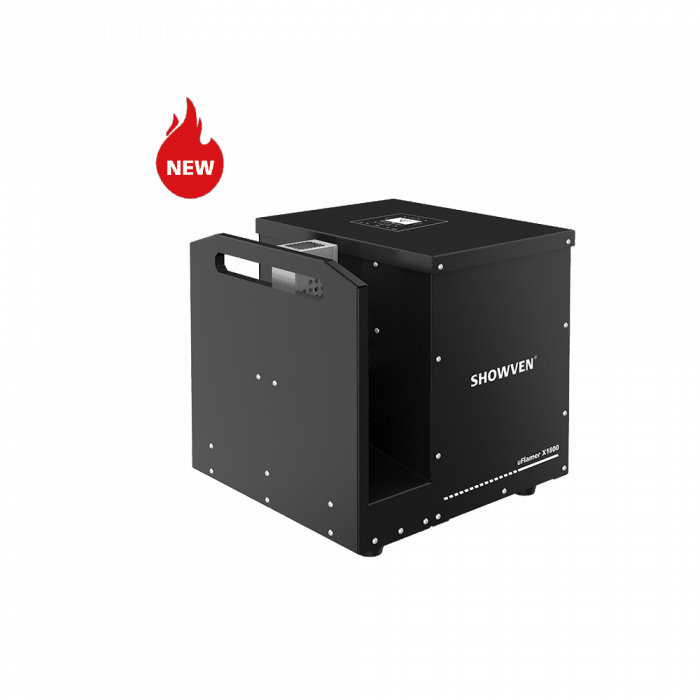

Flame Head – uFlamer® X1800

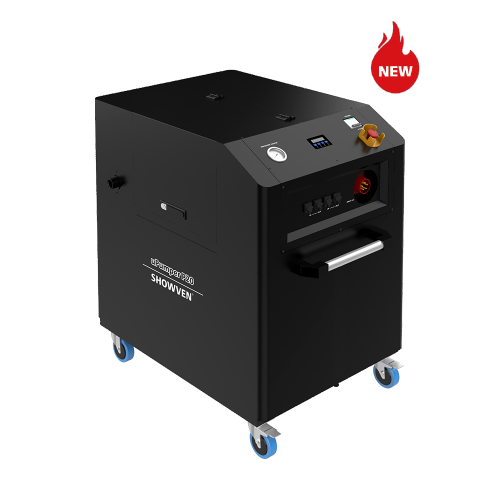

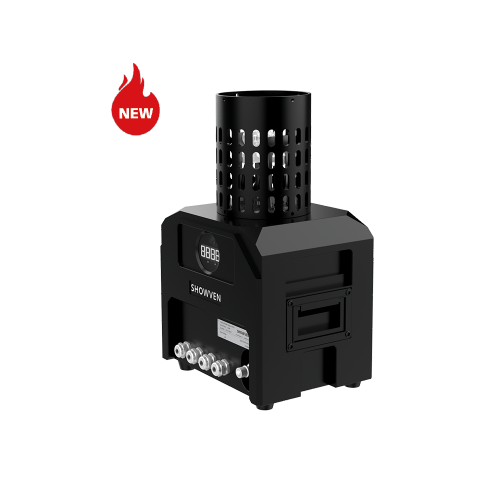

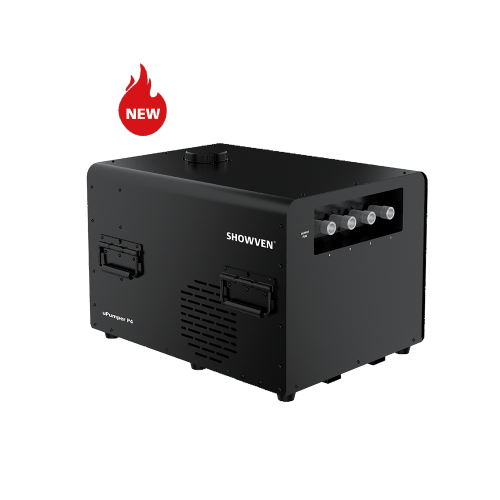

SHOWVEN® FLAME SYSTEM is a hydraulic based flame effect solution for project or truss mounted installations. It is consist of flame head, pump station, control box and accessories such as hoses, cables etc. It can easily achieve remote fuel supply with the pump station and no nitrogen tank needed. Any installation direction of flame heads brings endless design inspiration to event planners. In order to meet the requirements of different application scenarios we designed two pump station (uPumper® P20 and uPumper® P4) and two flame heads (uFlamer® PF10 and uFlamer® X1800).

Specifications:

Dimension:370 x 380 x 380 mm
Net Weight:19 kg
Housing material:304 Stainless steel
Input:220V, 110V
Work power:260W
Flame height:Up to 10m
Min. firing duration:0.1s
Firing Angle:210° (±105°)
Fuel:ISOPAR
Fuel consumption:60ml/s (Nozzle M), 30ml/s (Nozzle L)
Ignition:Dual, high voltage electron ignition
Control:DMX, 9-60V Pyro signal
Waterproof level:IPX4 for horizontal installation
Quick Couplers:ISO7241B G1/4 male
Accumulator:YES
Work pressure range:8-10bar
Installation angles:Any direction (bottom panel not waterproof)
Category: FLAMER
Category:

Description

Features and advantages

210° swivel angles
IPX4 rated waterproof, can be used in rain
Dual solenoid valve for extra safety
Dual ignitor ensure successful ignition
88 preset firing sequences, easy to operate
Support 9-60V pyro signal
Flames up to 10m
Stainless steel housing
Built-in accumulator
DMX control, both 3-pin and 5-pin XLR
